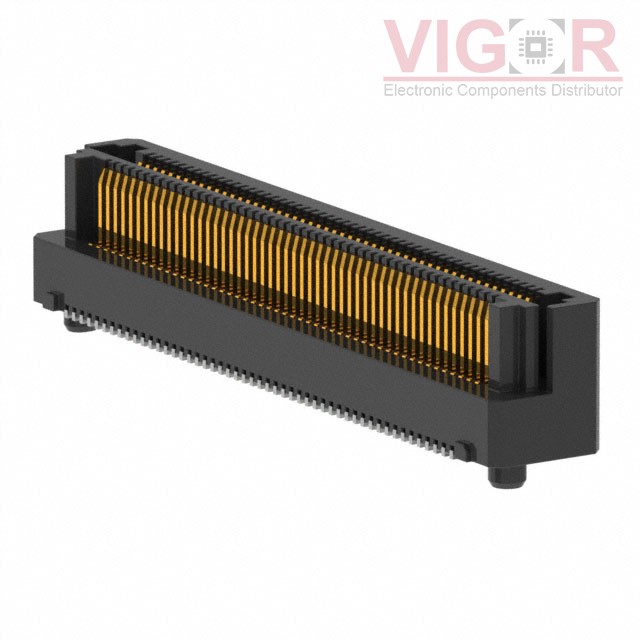

LSHM-150-04.0-F-DV-A-N-K-TR

Part No :: LSHM-150-04.0-F-DV-A-N-K-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3011375

Description: CONN SELF-MATE 100POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSHM-150-04.0-F-DV-A-N-K-TR PDF

Current price of LSHM-150-04.0-F-DV-A-N-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSHM-150-04.0-F-DV-A-N-K-TR Specifications

Type	Description
Series:	Razor Beam™ LSHM
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	100
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	6.5mm, 7mm, 8mm, 10mm
Height Above Board:	0.215" (5.46mm)
