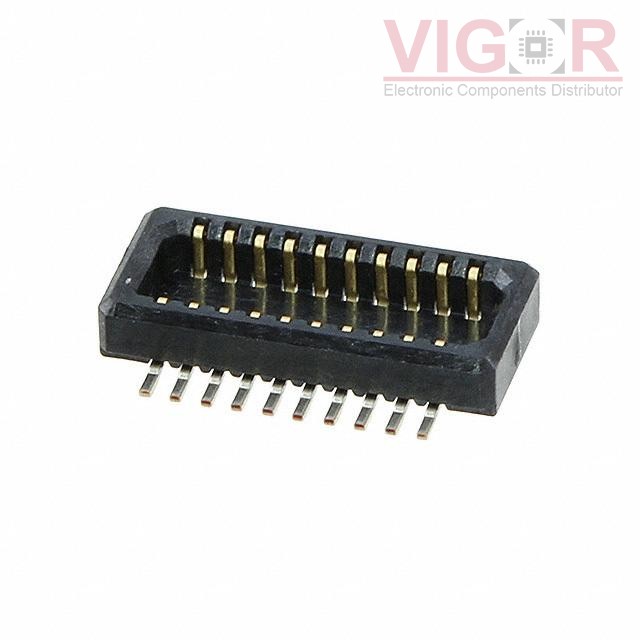

DF23C-20DP-0.5V(92)

Part No :: DF23C-20DP-0.5V(92)

Manufacturer: Hirose

VIGOR # :: 3011423

Description: CONN PLUG 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: DF23C-20DP-0.5V(92) PDF

Current price of DF23C-20DP-0.5V(92) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF23C-20DP-0.5V(92) Specifications

Type	Description
Series:	DF23
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	1.5mm
Height Above Board:	0.047" (1.20mm)
