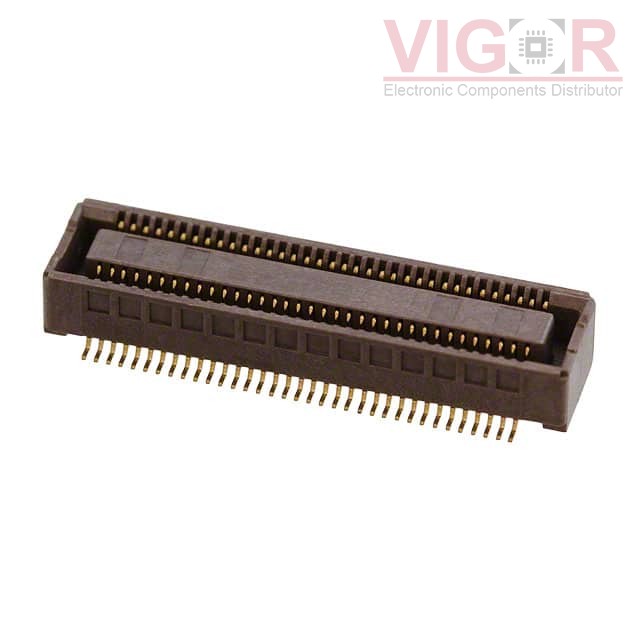

0546840704

Part No :: 0546840704

Manufacturer: Woodhead - Molex

VIGOR # :: 3011439

Description: CONN RCPT 70POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0546840704 PDF

Current price of 0546840704 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0546840704 Specifications

Type	Description
Series:	SlimStack 54684
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	70
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	3.5mm, 4mm
Height Above Board:	0.102" (2.60mm)

Please confirm the specifications of the products when ordering.
