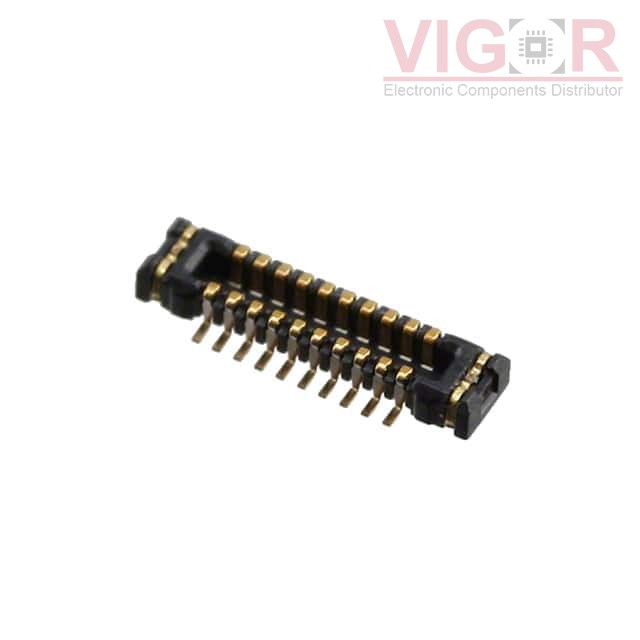

5024302030

Part No :: 5024302030

Manufacturer: Woodhead - Molex

VIGOR # :: 3011463

Description: CONN PLUG 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5024302030 PDF

Current price of 5024302030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5024302030 Specifications

Type	Description
Series:	SlimStack 502430
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	4.00µin (0.100µm)
Mated Stacking Heights:	1mm
Height Above Board:	0.031" (0.80mm)
