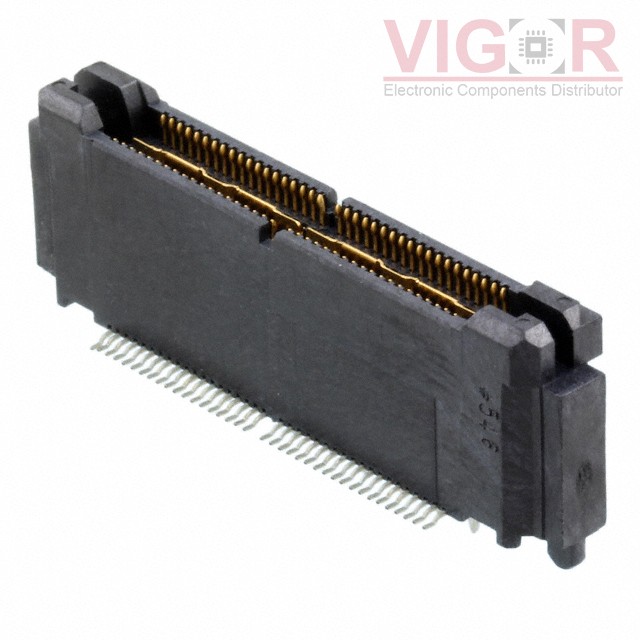

5767057-2

Part No :: 5767057-2

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3011518

Description: CONN PLUG 76P SMD PALLAD-NICKEL

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5767057-2 PDF

Current price of 5767057-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5767057-2 Specifications

Type	Description
Series:	MICTOR
Package:	Tube
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	76
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane)
Contact Finish:	Palladium-Nickel
Contact Finish Thickness:	5.00µin (0.127µm)
Mated Stacking Heights:	12.57mm, 21.6mm
Height Above Board:	0.484" (12.29mm)
