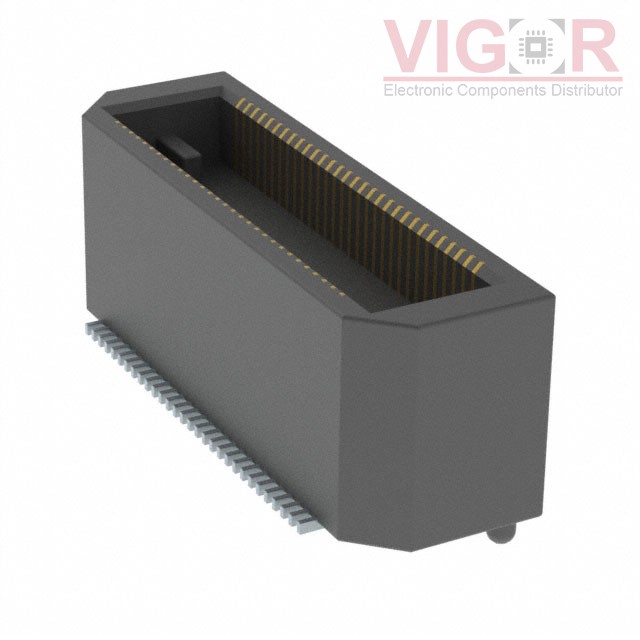

BTH-030-02-F-D-A

Part No :: BTH-030-02-F-D-A

Manufacturer: Samtec, Inc.

VIGOR # :: 3011713

Description: CONN HDR 60POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-030-02-F-D-A PDF

Current price of BTH-030-02-F-D-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-030-02-F-D-A Specifications

Type	Description
Series:	BTH
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	60
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	8mm
Height Above Board:	0.286" (7.26mm)
