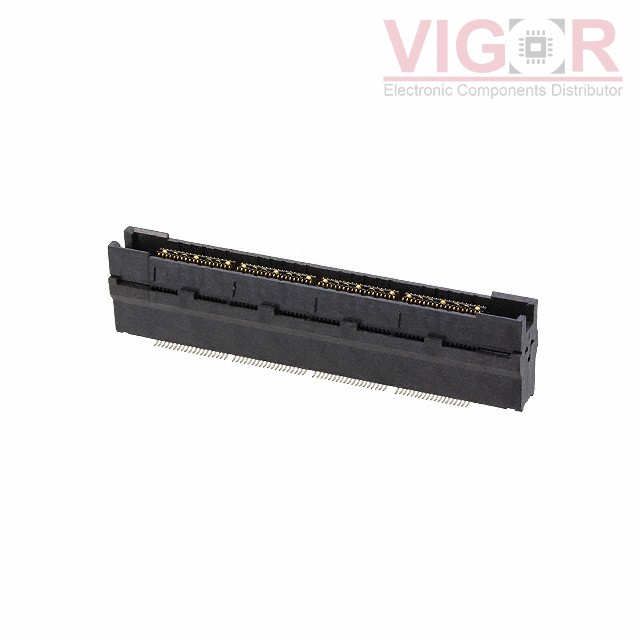

5767130-4

Part No :: 5767130-4

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3011848

Description: CONN RCPT 152POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5767130-4 PDF

Current price of 5767130-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5767130-4 Specifications

Type	Description
Series:	MICTOR
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	152
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane)
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm
Height Above Board:	0.587" (14.91mm)

Please confirm the specifications of the products when ordering.
