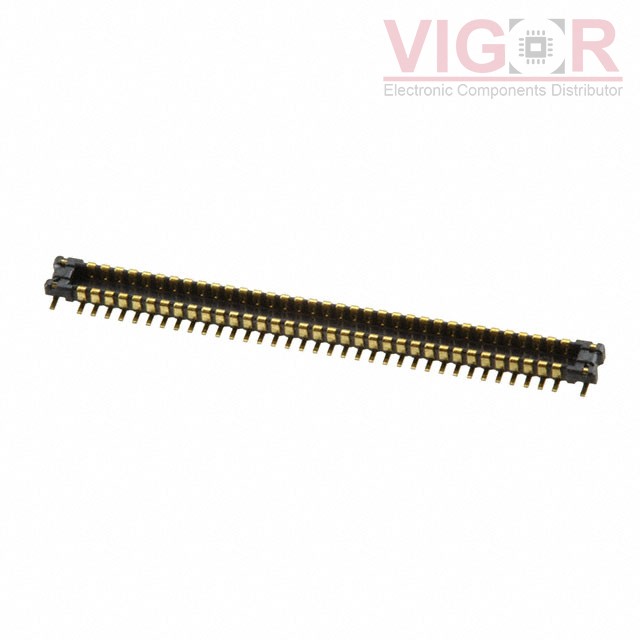

AXE270124A

Part No :: AXE270124A

Manufacturer: Panasonic

VIGOR # :: 3011887

Description: CONN HDR 70POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXE270124A PDF

Current price of AXE270124A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXE270124A Specifications

Type	Description
Series:	A4US
Package:	Strip
Part Status:	Obsolete
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	70
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.8mm
Height Above Board:	0.026" (0.65mm)

Please confirm the specifications of the products when ordering.
