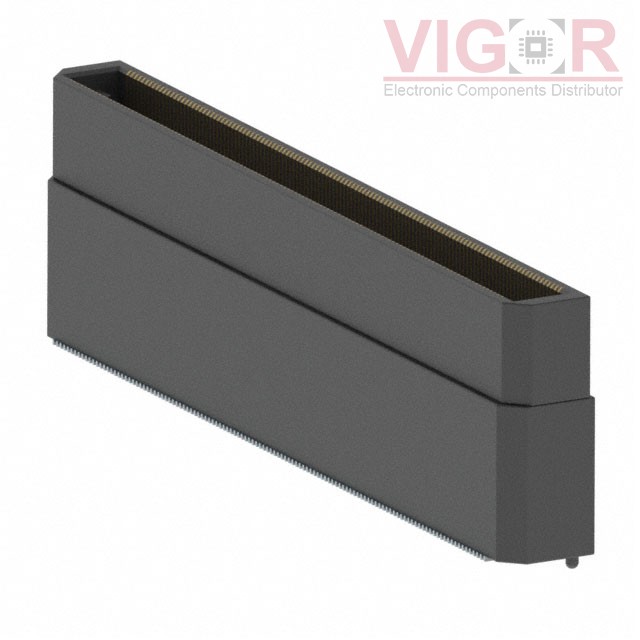

BTH-120-05-F-D-A

Part No :: BTH-120-05-F-D-A

Manufacturer: Samtec, Inc.

VIGOR # :: 3011910

Description: CONN HDR 240POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-120-05-F-D-A PDF

Country of origin: -

Date code: -

BTH-120-05-F-D-A Specifications

Type	Description
Series:	BTH
Package:	Tube
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	240
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	19mm
Height Above Board:	0.718" (18.24mm)
