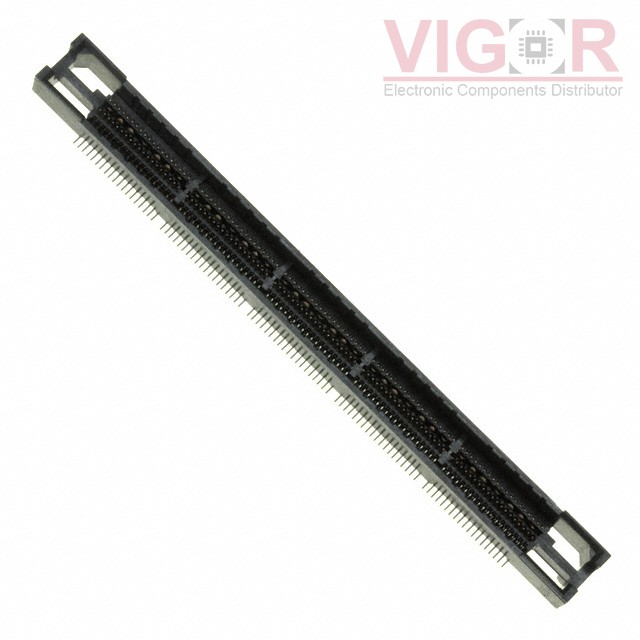

2-5767004-6

Part No :: 2-5767004-6

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3012230

Description: CONN RCPT 190POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 2-5767004-6 PDF

Current price of 2-5767004-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-5767004-6 Specifications

Type	Description
Series:	MICTOR
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	190
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane)
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board:	0.236" (6.00mm)

Please confirm the specifications of the products when ordering.
