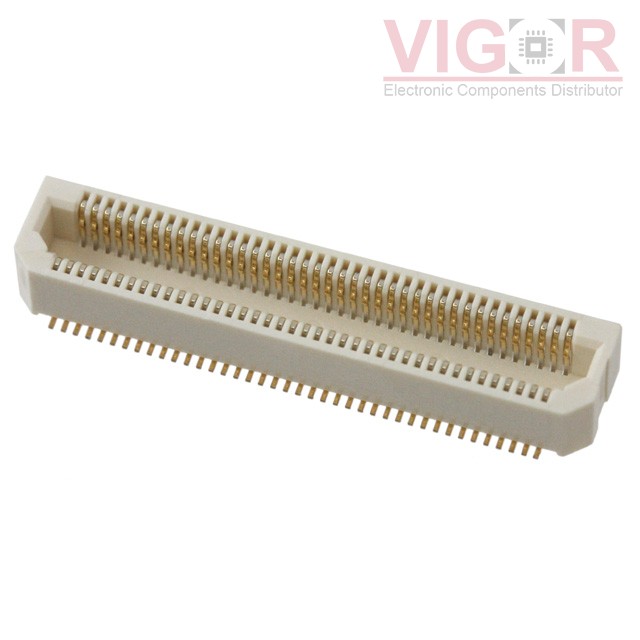

AXK5S80047YG

Part No :: AXK5S80047YG

Manufacturer: Panasonic

VIGOR # :: 3012290

Description: CONN SOCKET 80POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXK5S80047YG PDF

Current price of AXK5S80047YG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXK5S80047YG Specifications

Type	Description
Series:	P5KS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	80
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	4mm, 5mm, 6mm
Height Above Board:	0.120" (3.05mm)

Please confirm the specifications of the products when ordering.
