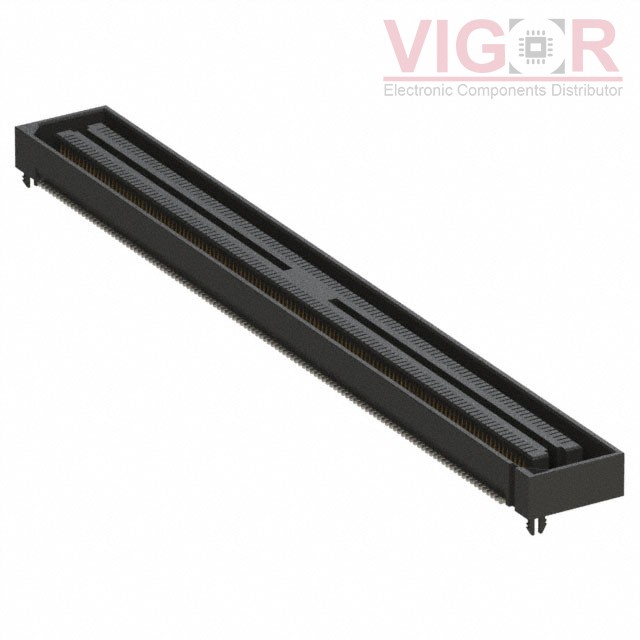

BSH-120-01-L-D-LC

Part No :: BSH-120-01-L-D-LC

Manufacturer: Samtec, Inc.

VIGOR # :: 3012681

Description: CONN SOCKET 240POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BSH-120-01-L-D-LC PDF

Current price of BSH-120-01-L-D-LC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSH-120-01-L-D-LC Specifications

Type	Description
Series:	BSH
Package:	Tray
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	240
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Lock
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	5mm
Height Above Board:	0.128" (3.25mm)
