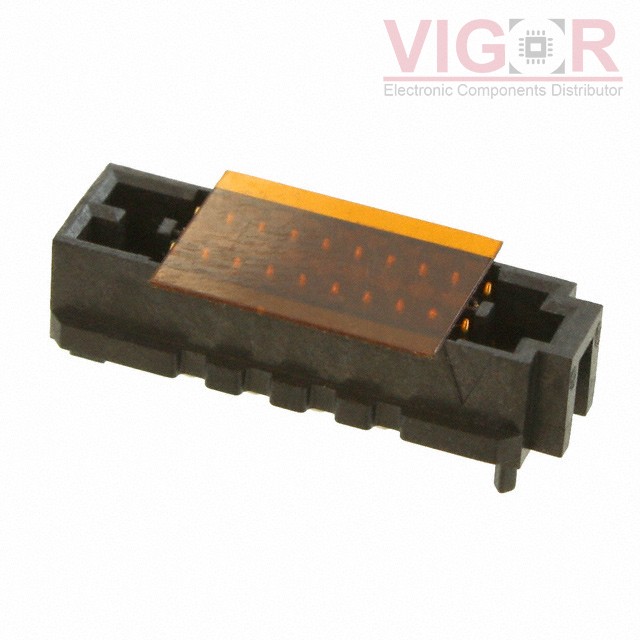

0465571145

Part No :: 0465571145

Manufacturer: Woodhead - Molex

VIGOR # :: 3012691

Description: CONN HD ARRAY RCPT 40P SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0465571145 PDF

Current price of 0465571145 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0465571145 Specifications

Type	Description
Series:	SEARAY 46557
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	High Density Array, Female
Number of Positions:	40
Pitch:	0.050" (1.27mm)
Number of Rows:	4
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	7mm, 7.5mm, 8mm, 8.5mm, 9.5mm, 10mm, 12mm
Height Above Board:	0.199" (5.05mm)

Please confirm the specifications of the products when ordering.
