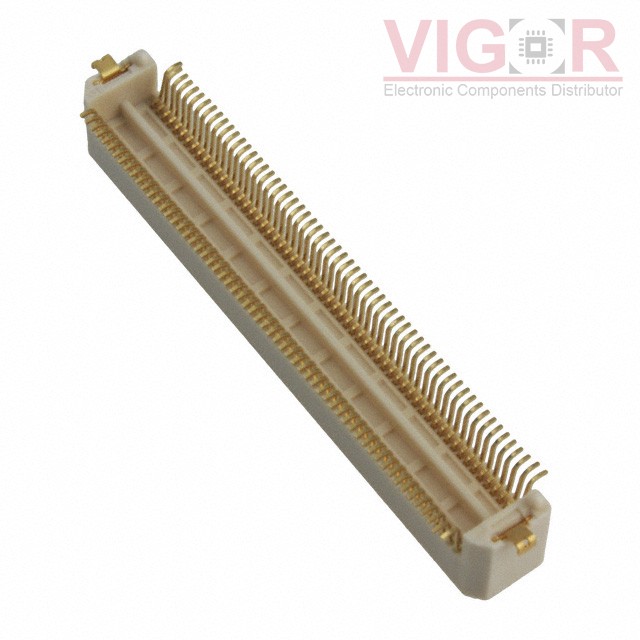

PK5-120S-CLT-4-GGF

Part No :: PK5-120S-CLT-4-GGF

Manufacturer: 3M

VIGOR # :: 4623363

Description: CONN SOCKET 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: PK5-120S-CLT-4-GGF PDF

Current price of PK5-120S-CLT-4-GGF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PK5-120S-CLT-4-GGF Specifications

Type	Description
Series:	Pak 5, PK5
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Connector Type:	Socket, Outer Shroud Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	2.00µin (0.051µm)
Mated Stacking Heights:	6mm, 8mm
Height Above Board:	0.198" (5.02mm)

Please confirm the specifications of the products when ordering.
