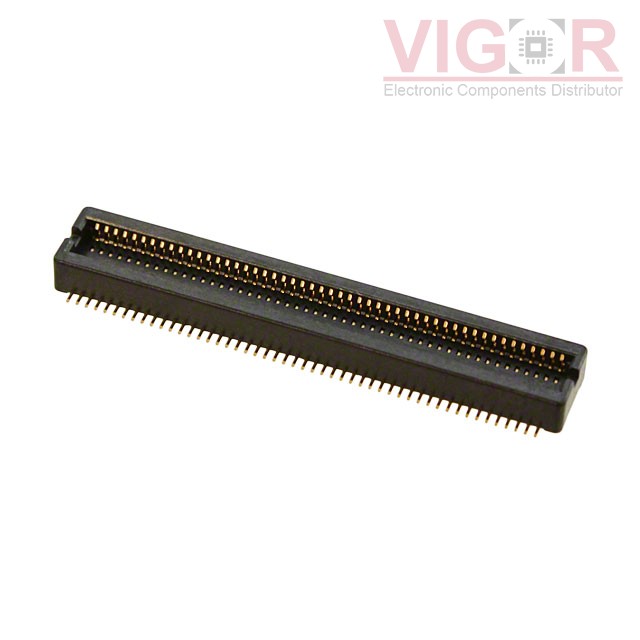

IL-312-A100S-VF-A1

Part No :: IL-312-A100S-VF-A1

Manufacturer: JAE Electronics

VIGOR # :: 4623380

Description: CONN RCPT 100POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: IL-312-A100S-VF-A1 PDF

Current price of IL-312-A100S-VF-A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IL-312-A100S-VF-A1 Specifications

Type	Description
Series:	IL-312
Package:	Strip
Part Status:	Obsolete
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	100
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	2.5mm, 3mm
Height Above Board:	0.085" (2.16mm)
