DW-09-10-G-S-600

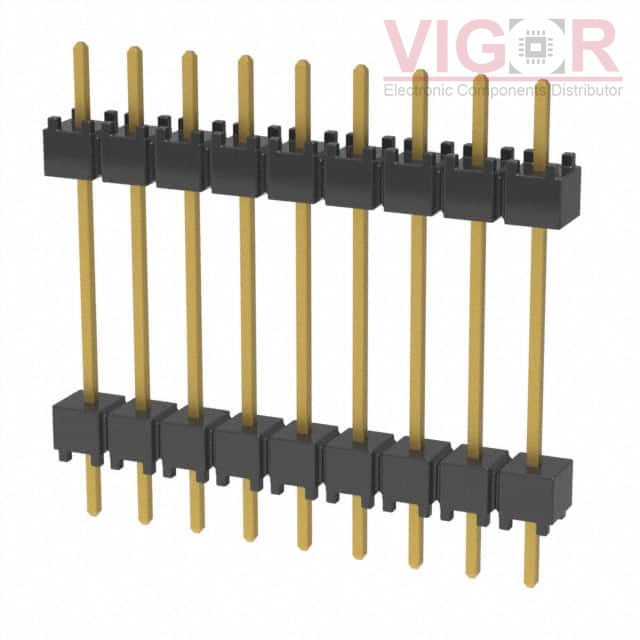

Image is for reference,
please contact us to get the real picture

Part No :: DW-09-10-G-S-600

Manufacturer: Samtec, Inc.

Description: CONN HDR 9POS 0.1 STACK T/H GOLD

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: DW-09-10-G-S-600 PDF

Availability: 444 pieces

Unit Price: ~~$1.45000~~

Current price of DW-09-10-G-S-600 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DW-09-10-G-S-600 Specifications

Type	Description
Series:	Flex Stack, DW
Package:	Bulk
Part Status:	Active
Number of Positions:	9
Pitch:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.830" (21.082mm)
Length - Post (Mating):	0.120" (3.048mm)
Length - Stack Height:	0.600" (15.240mm)
Length - Tail:	0.110" (2.794mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black
