TW-08-03-L-D-250-120

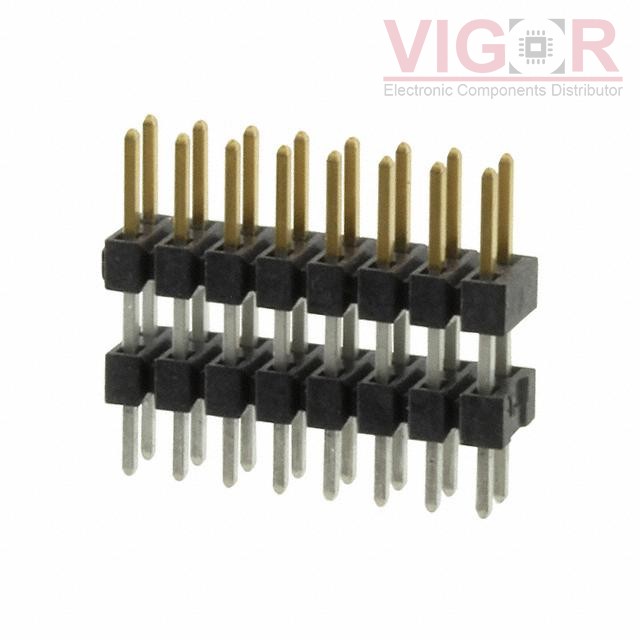

Image is for reference,
please contact us to get the real picture

Part No :: TW-08-03-L-D-250-120

Manufacturer: Samtec, Inc.

Description: CONN HDR 16POS 0.079 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: TW-08-03-L-D-250-120 PDF

Availability: 135 pieces

Unit Price: ~~$2.65000~~

Current price of TW-08-03-L-D-250-120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TW-08-03-L-D-250-120 Specifications

Type	Description
Series:	TW
Package:	Bulk
Part Status:	Active
Number of Positions:	16
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing:	0.079" (2.00mm)
Length - Overall Pin:	0.535" (13.589mm)
Length - Post (Mating):	0.165" (4.191mm)
Length - Stack Height:	0.250" (6.350mm)
Length - Tail:	0.120" (3.048mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black
