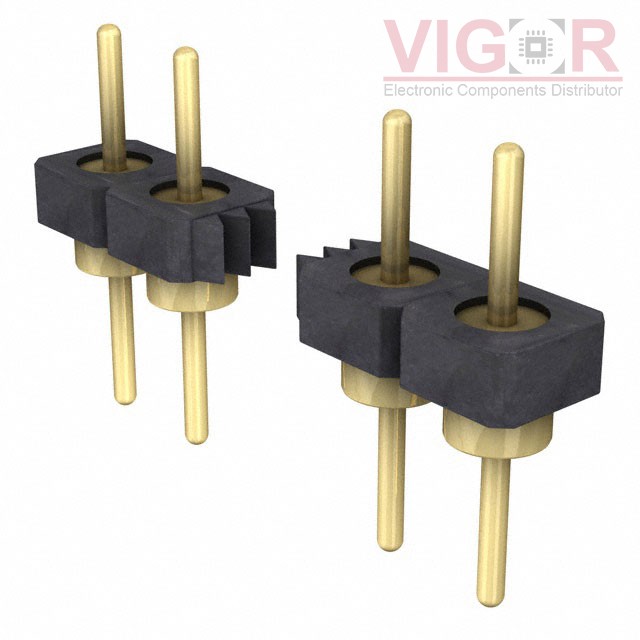

BBL-114-G-F

Part No :: BBL-114-G-F

Manufacturer: Samtec, Inc.

VIGOR # :: 3019387

Description: CONN HEADER VERT 14POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: BBL-114-G-F PDF

Country of origin: -

Date code: -

BBL-114-G-F Specifications

Type	Description
Series:	BBL
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	14
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.122" (3.10mm)
Contact Length - Post:	0.125" (3.18mm)
Overall Contact Length:	0.332" (8.43mm)
Insulation Height:	0.085" (2.15mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Nickel
Contact Material:	-
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
