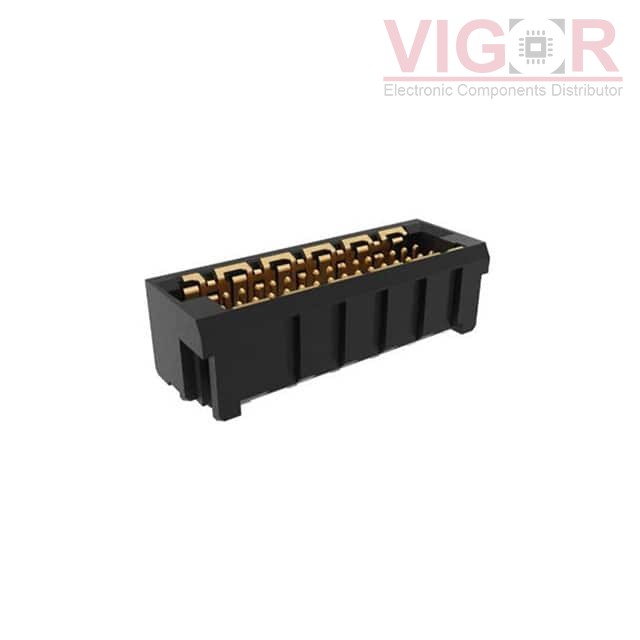

10150098-3200RLF

Part No :: 10150098-3200RLF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: MINITEK MICROSPEED 1.00MM BOARD-

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 10150098-3200RLF PDF

Availability: 1191 pieces

Unit Price: ~~$5.04000~~

Current price of 10150098-3200RLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10150098-3200RLF Specifications

Type	Description
Series:	Minitek® MicroSpeed
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	32
Number of Rows:	2
Row Spacing - Mating:	0.059" (1.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.114" (2.90mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.226" (5.74mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.94µin (0.100µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Board Guide, Pick and Place, Solder Retention
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	100VAC
