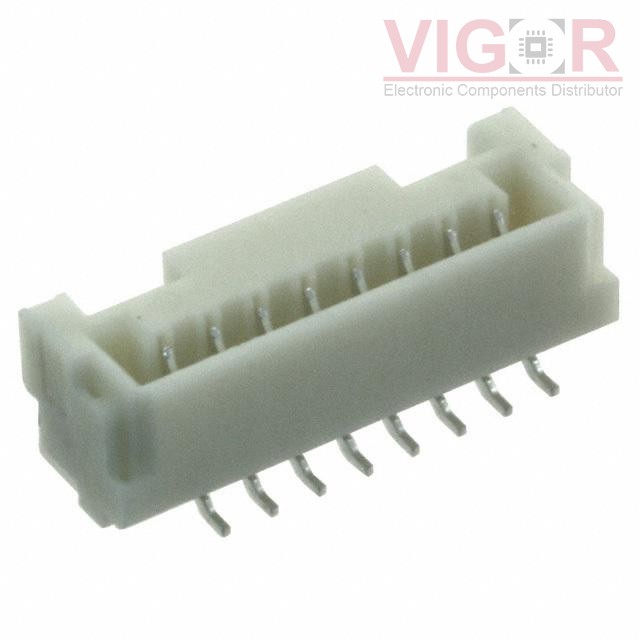

BM08B-GVHS-TB(LF)(SN)

Part No :: BM08B-GVHS-TB(LF)(SN)

Manufacturer: JST

VIGOR # :: 3019960

Description: CONN HEADER SMD 8POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: BM08B-GVHS-TB(LF)(SN) PDF

Country of origin: -

Date code: -

BM08B-GVHS-TB(LF)(SN) Specifications

Type	Description
Series:	GVH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Outer Shroud Contact
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.159" (4.05mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	1A
Voltage Rating:	50V

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 02 - Nov 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.3050~~	~~$0.30~~
2500	~~$0.3050~~	~~$762.50~~

Current price of BM08B-GVHS-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

0010977166

CONN HEADER VERT 16POS 2.54MM

0877597626

CONN HEADER SMD 8POS 2MM

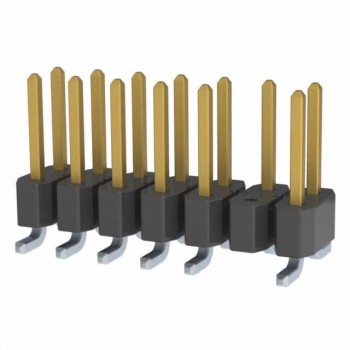

TSM-107-01-L-DV-003-P
