SM26B-ZPDSS-TF(LF)(SN)

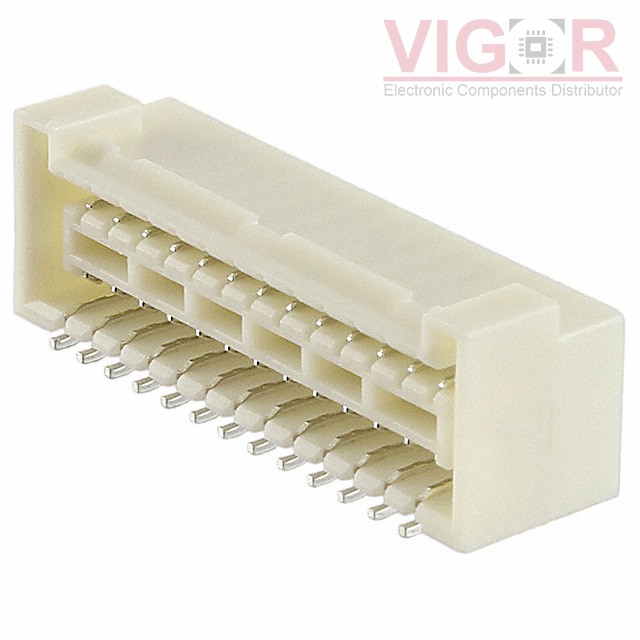

Part No :: SM26B-ZPDSS-TF(LF)(SN)

Manufacturer: JST

VIGOR # :: 3020656

Description: CONN HEADER SMD R/A 26POS 1.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SM26B-ZPDSS-TF(LF)(SN) PDF

Country of origin: Confirming

Date code: TBC

SM26B-ZPDSS-TF(LF)(SN) Specifications

Type	Description
Series:	ZPD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Outer Shroud Contact
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.309" (7.85mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	2A
Voltage Rating:	100V
