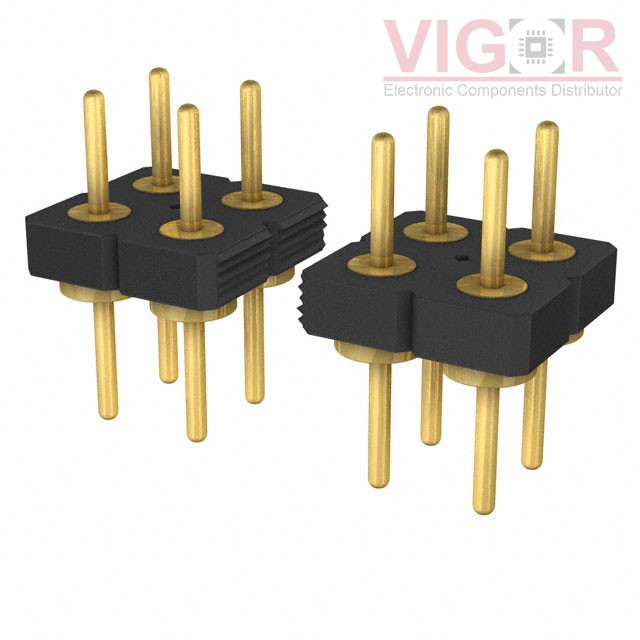

BDL-125-G-E

Part No :: BDL-125-G-E

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 50POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: BDL-125-G-E PDF

Availability: 0 pieces

Unit Price: ~~$21.50667~~

Current price of BDL-125-G-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BDL-125-G-E Specifications

Type	Description
Series:	BDL
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.105" (2.67mm)
Contact Length - Post:	0.125" (3.18mm)
Overall Contact Length:	0.300" (7.62mm)
Insulation Height:	0.070" (1.78mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Gold
Contact Material:	-
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
