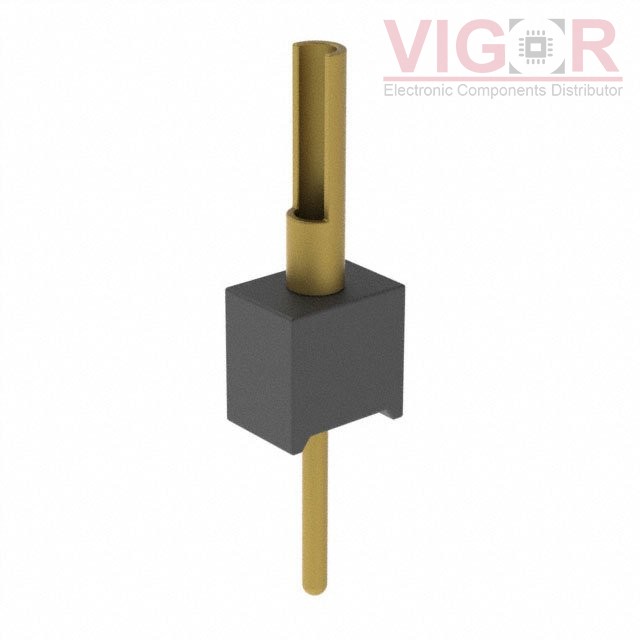

850-10-001-10-003000

Part No :: 850-10-001-10-003000

Manufacturer: Mill-Max

Description: CONN HEADER VERT 1POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 850-10-001-10-003000 PDF

Availability: 829 pieces

Unit Price: ~~$0.76000~~

Current price of 850-10-001-10-003000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

850-10-001-10-003000 Specifications

Type	Description
Series:	850
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	1
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.100" (2.54mm)
Contact Length - Post:	0.122" (3.10mm)
Overall Contact Length:	0.303" (7.70mm)
Insulation Height:	0.084" (2.14mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Brass Alloy
Insulation Material:	Polyamide (PA46), Nylon 4/6
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
