DF11GZ-20DP-2V(20)

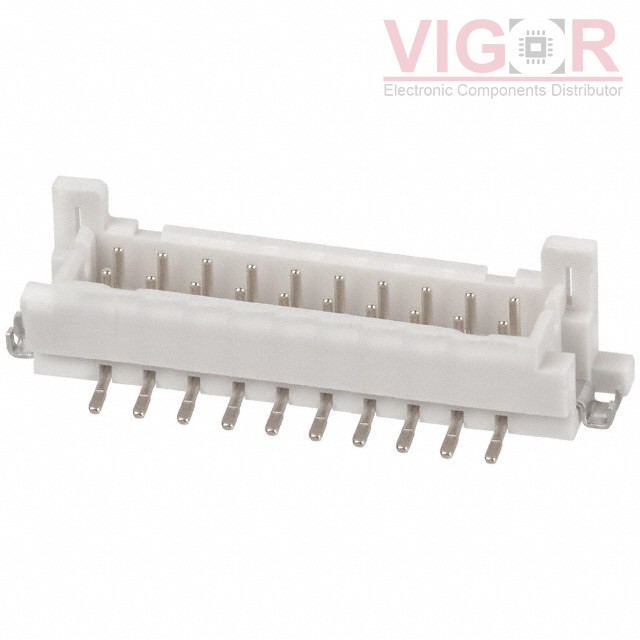

Image is for reference,
please contact us to get the real picture

Part No :: DF11GZ-20DP-2V(20)

Manufacturer: Hirose

Description: CONN HEADER SMD 20POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF11GZ-20DP-2V(20) PDF

Availability: 1045 pieces

Unit Price: ~~$1.50000~~

Current price of DF11GZ-20DP-2V(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF11GZ-20DP-2V(20) Specifications

Type	Description
Series:	DF11
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.283" (7.19mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Solder Retention
Operating Temperature:	-30°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	2A
Voltage Rating:	250V
