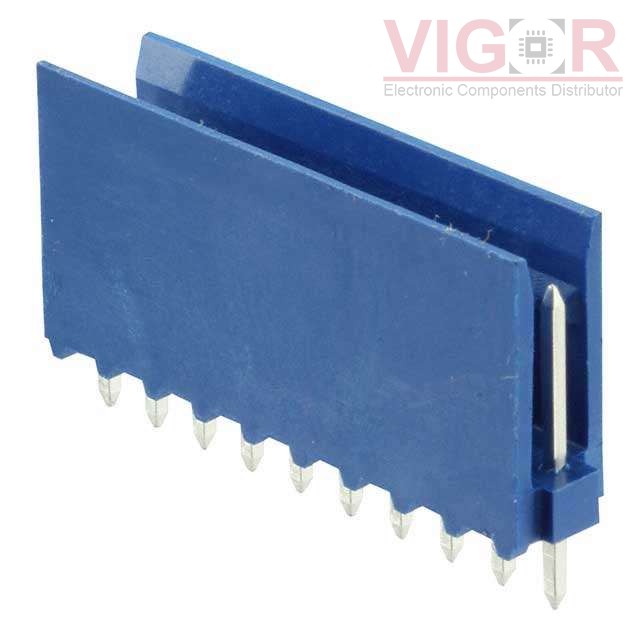

1-281695-0

Image is for reference,
please contact us to get the real picture

Part No :: 1-281695-0

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 10POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-281695-0 PDF

Availability: 1702 pieces

Unit Price: ~~$2.15000~~

Current price of 1-281695-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-281695-0 Specifications

Type	Description
Series:	HE13/HE14
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 2 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.276" (7.00mm)
Contact Length - Post:	0.114" (2.90mm)
Overall Contact Length:	0.492" (12.50mm)
Insulation Height:	0.449" (11.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-40°C ~ 100°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Blue
Current Rating (Amps):	-
Voltage Rating:	-
