1722991112

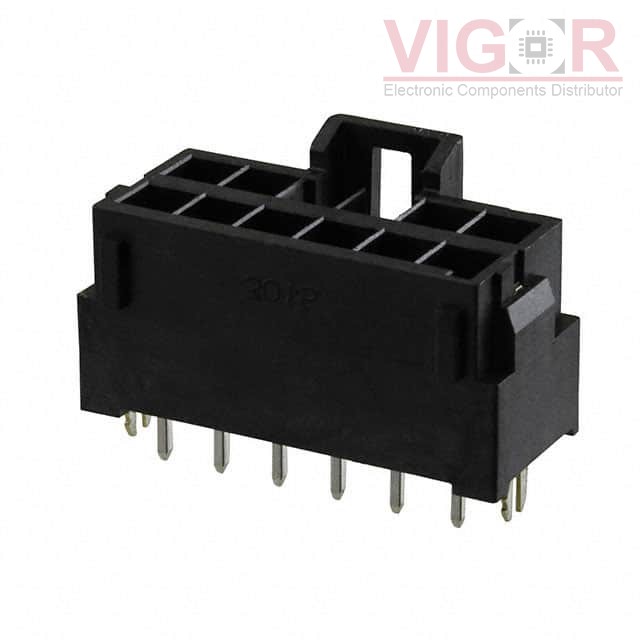

Product image
Product thumb
Part No :

1722991112

Manufacturer
Woodhead - Molex
VIGOR # :

3022464

Description
CONN HEADER VERT 12POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1722991112 PDF
Country of origin
-
Date code
-
ads
1722991112 Specifications
Type Description
Series:Ultra-Fit 172299
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.181" (4.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.465" (11.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:400V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 206
Shipped from
HK warehouse
Expected Shipping Date
Jan 20 - Jan 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.58 $2.58
10 $2.34 $23.38
100 $2.00 $200.42
500 $1.67 $835.10
1000 $1.43 $1 431.60
5000 $1.27 $6 346.75

Current price of 1722991112 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

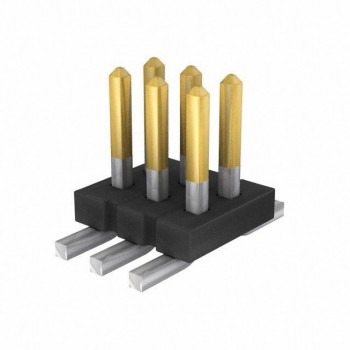

FTS-103-01-LM-DV-TR

FTS-103-01-LM-DV-TR

CONN HEADER SMD 6POS 1.27MM

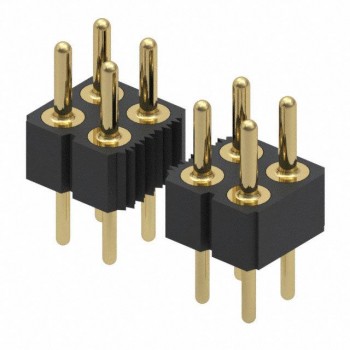

802-10-044-10-002000

802-10-044-10-002000

CONN HEADER VERT 44POS 2.54MM

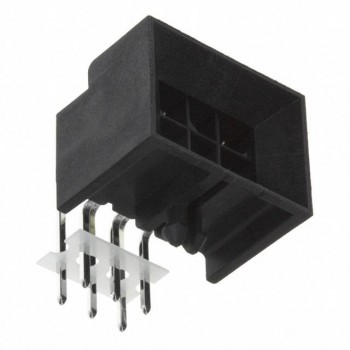

0444280601
