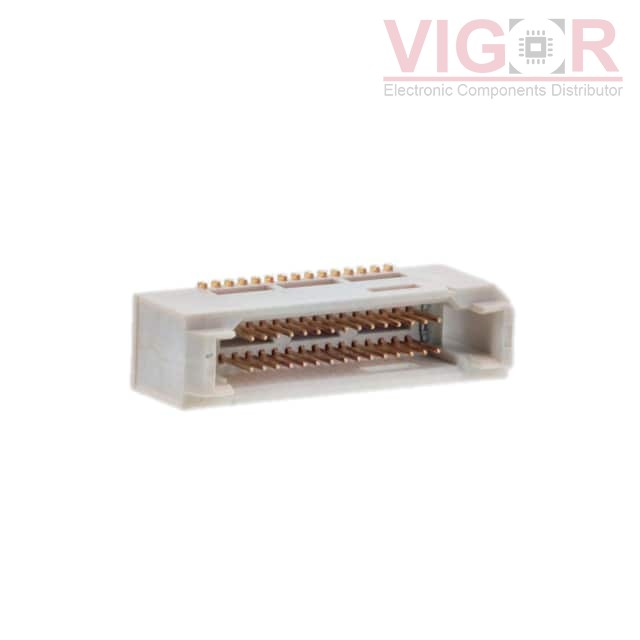

TEM-115-02-03.0-G-D-L1

Part No :: TEM-115-02-03.0-G-D-L1

Manufacturer: Samtec, Inc.

Description: .8MM TIGER EYE MICRO TERMINAL

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TEM-115-02-03.0-G-D-L1 PDF

Availability: 51 pieces

Unit Price: ~~$6.19000~~

Current price of TEM-115-02-03.0-G-D-L1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TEM-115-02-03.0-G-D-L1 Specifications

Type	Description
Series:	Tiger Eye™ TEM
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.031" (0.80mm)
Number of Positions:	30
Number of Rows:	2
Row Spacing - Mating:	0.063" (1.60mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	2.9A per Contact
Voltage Rating:	-
