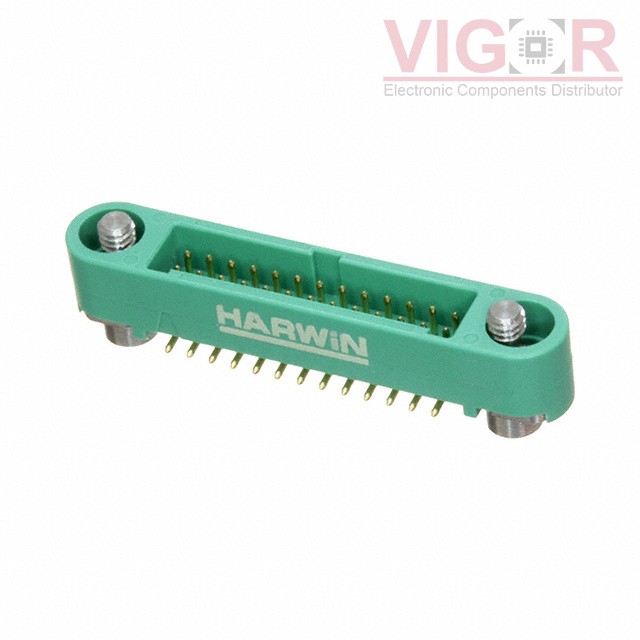

G125-MS12605M3P

Part No :: G125-MS12605M3P

Manufacturer: Harwin

Description: CONN HEADER SMD 26POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: G125-MS12605M3P PDF

Availability: 50 pieces

Unit Price: ~~$19.20000~~

Current price of G125-MS12605M3P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

G125-MS12605M3P Specifications

Type	Description
Series:	Gecko SL Reverse Fix
Package:	Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	0.049" (1.25mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Screw Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.193" (4.90mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features:	Mating Flange, Mounting Flange, Pick and Place
Operating Temperature:	-65°C ~ 150°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Green
Current Rating (Amps):	2A
Voltage Rating:	450V
