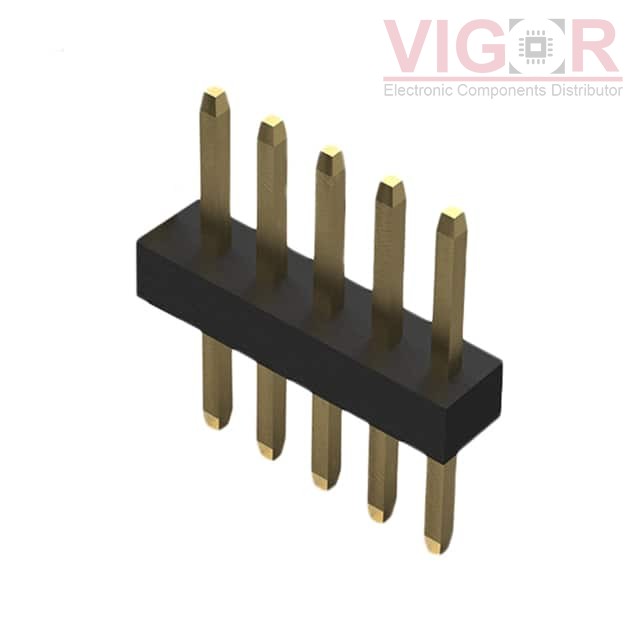

BC020-05-A-0200-0300-L-G

Part No :: BC020-05-A-0200-0300-L-G

Manufacturer: Global Connector Technology, Limited (GCT)

Description: 5POS 1.0MM PITCH PIN HEADER, SIL

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: BC020-05-A-0200-0300-L-G PDF

Availability: 4103 pieces

Unit Price: ~~$0.95000~~

Current price of BC020-05-A-0200-0300-L-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BC020-05-A-0200-0300-L-G Specifications

Type	Description
Series:	BC020
Package:	Box
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.079" (2.00mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	0.236" (6.00mm)
Insulation Height:	0.039" (1.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	250VAC/DC
