2-292141-4

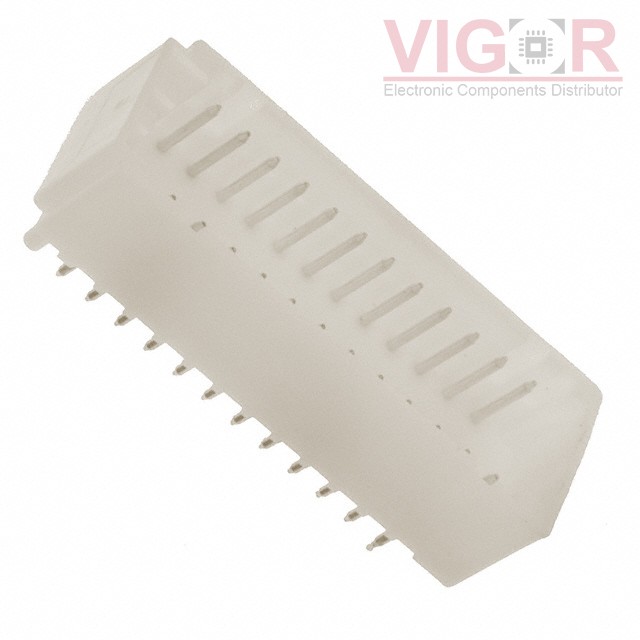

Product image
Product thumb
Part No :

2-292141-4

Manufacturer
VIGOR # :

3033391

Description
CONN HEADER VERT 24POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
2-292141-4 PDF
Country of origin
-
Date code
-
ads
2-292141-4 Specifications
Type Description
Series:CT
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.256" (6.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.185" (4.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.386" (9.80mm)
Insulation Height:0.295" (7.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:125VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2095
Shipped from
HK warehouse
Expected Shipping Date
May 17 - May 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.2300 $1.23
10 $1.0962 $10.96
150 $0.9564 $143.46
600 $0.7970 $478.21
1050 $0.7173 $753.17
5100 $0.6376 $3 251.76
10050 $0.6097 $6 127.59

Current price of 2-292141-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
