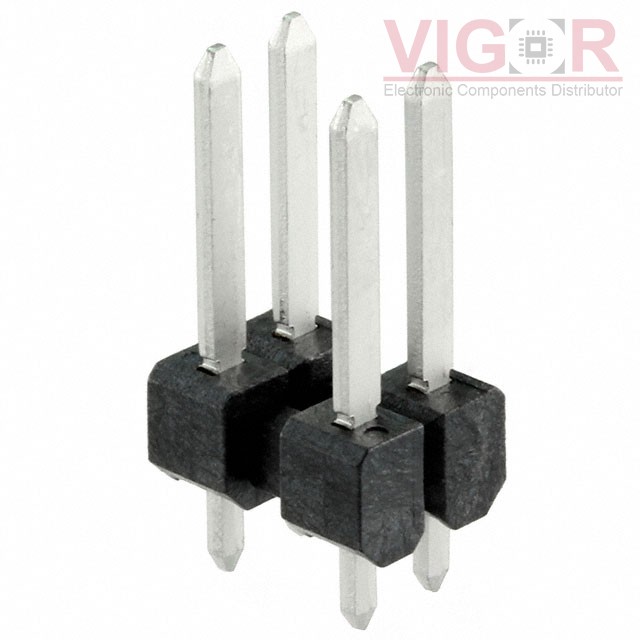

0757571121

Part No :: 0757571121

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 4POS 3.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0757571121 PDF

Availability: 12688 pieces

Unit Price: ~~$0.73000~~

Current price of 0757571121 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0757571121 Specifications

Type	Description
Series:	MX150 75757
Package:	Tube
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Blade
Pitch - Mating:	0.138" (3.50mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.236" (6.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.441" (11.20mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.738" (18.75mm)
Insulation Height:	0.177" (4.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Cartridge Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
