159220-6002

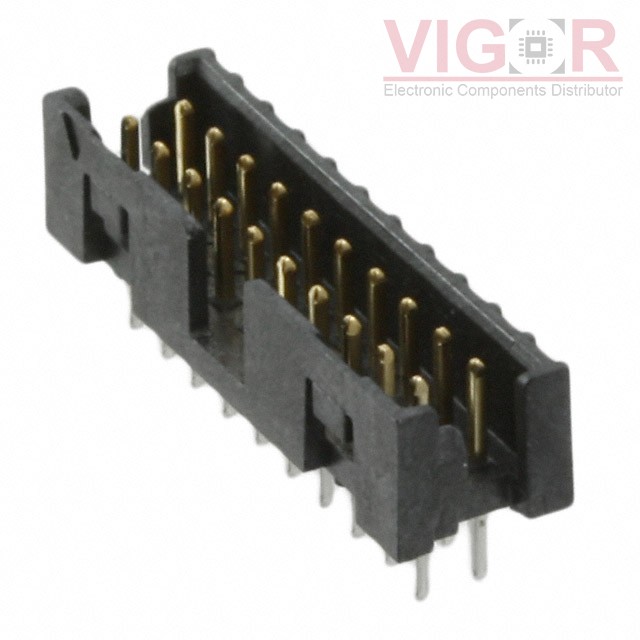

Product image
Product thumb
Part No :

159220-6002

Manufacturer
3M
VIGOR # :

3047232

Description
CONN HEADER VERT 20POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
159220-6002 PDF
Country of origin
-
Date code
-
ads
159220-6002 Specifications
Type Description
Series:159
Package:Tray
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.142" (3.61mm)
Contact Length - Post:0.112" (2.84mm)
Overall Contact Length:-
Insulation Height:0.210" (5.33mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.25A
Voltage Rating:150V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 24
Shipped from
HK warehouse
Expected Shipping Date
May 23 - May 27 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.8800 $2.88
10 $2.6154 $26.15
324 $2.0282 $657.15
648 $1.8681 $1 210.54
1296 $1.6012 $2 075.21
5184 $1.4198 $7 360.04

Current price of 159220-6002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
