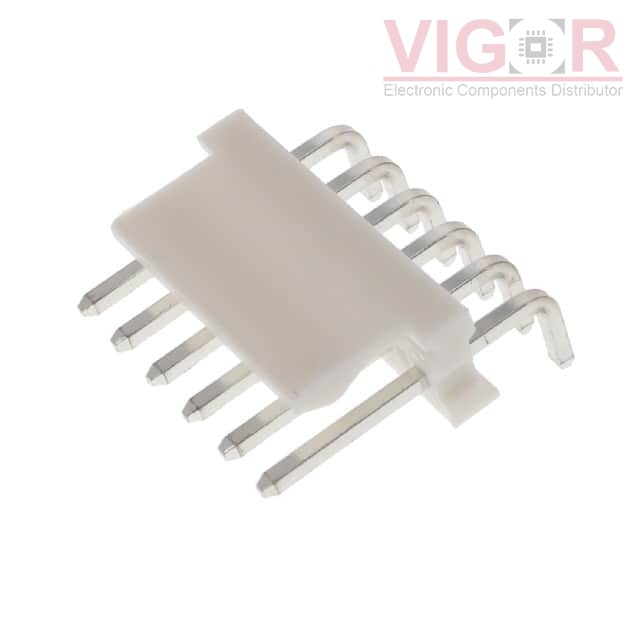

| Type | Description |
|---|---|
| Series: | LHD |
| Package: | Bag |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.156" (3.96mm) |
| Number of Positions: | 6 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 1 Wall |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Friction Lock |
| Contact Length - Mating: | 0.449" (11.40mm) |
| Contact Length - Post: | 0.126" (3.20mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.300" (7.62mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-2 |
| Insulation Color: | White |
| Current Rating (Amps): | 7A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 |
Current price of LHD-06-TRA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
