DF61-2P-2.2V(22)

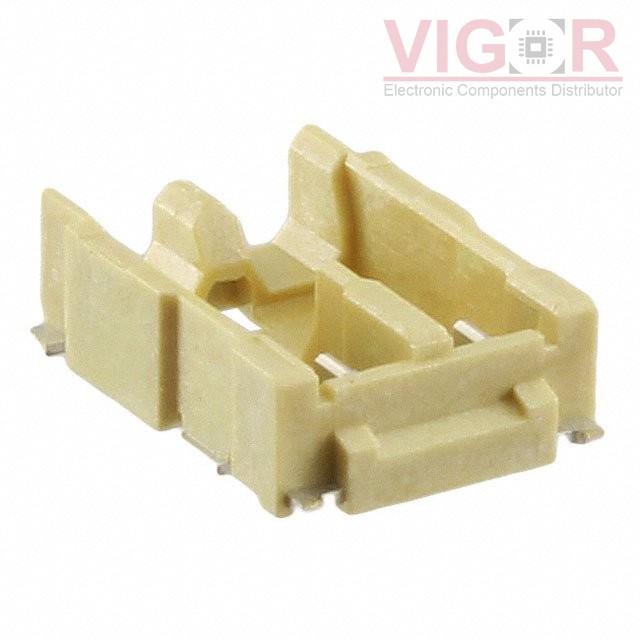

Image is for reference,
please contact us to get the real picture

Part No :: DF61-2P-2.2V(22)

Manufacturer: Hirose

Description: CONN HEADER SMD 2POS 2.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF61-2P-2.2V(22) PDF

Availability: 516 pieces

Unit Price: ~~$0.77000~~

Current price of DF61-2P-2.2V(22) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF61-2P-2.2V(22) Specifications

Type	Description
Series:	DF61
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.087" (2.20mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Swing Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.086" (2.18mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Yellow
Current Rating (Amps):	-
Voltage Rating:	-
