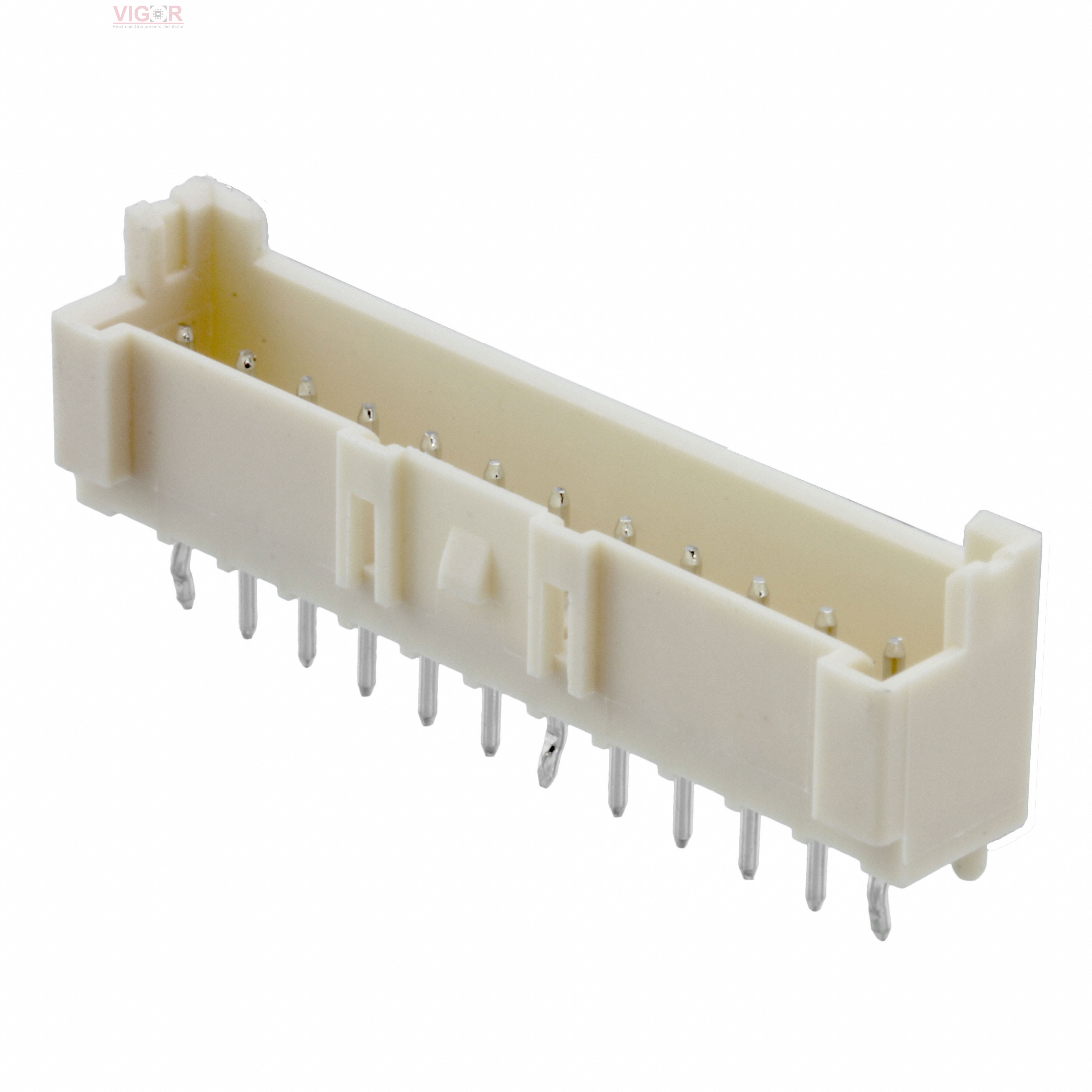

| Type | Description |
|---|---|
| Series: | Economy Power 2.5 |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.098" (2.50mm) |
| Number of Positions: | 12 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Friction Lock |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.134" (3.40mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.346" (8.80mm) |
| Contact Shape: | Circular |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 80.0µin (2.03µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Polyamide (PA), Nylon |
| Features: | Board Guide, Glow Wire Compliant |
| Operating Temperature: | -55°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Natural |
| Current Rating (Amps): | 4.2A |
| Voltage Rating: | 250VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 25 | ||
| 50 | ||
| 100 | ||
| 250 | ||
| 500 | ||
| 1000 | ||
| 2500 |
Current price of 1-1744418-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 30POS 2.54MM
CONN HEADER VERT 25POS 2.54MM

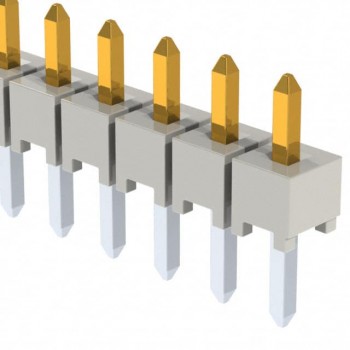

CONN HEADER VERT 40POS 2.54MM
