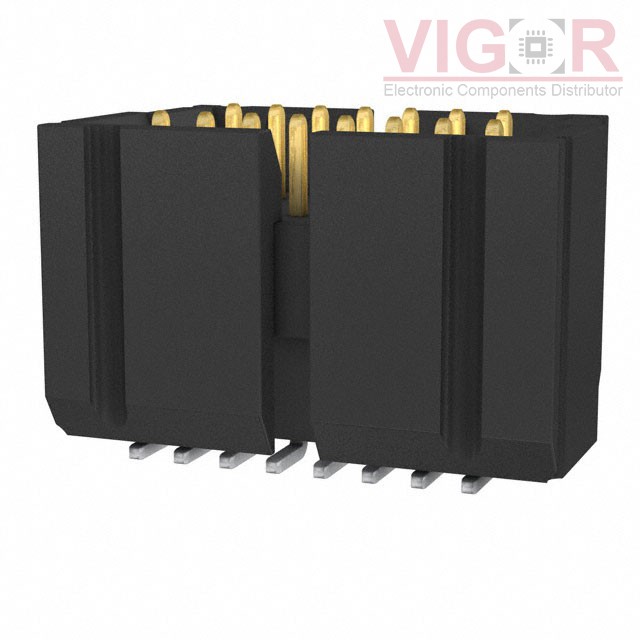

BKT-115-05-F-V-S

Part No :: BKT-115-05-F-V-S

Manufacturer: Samtec, Inc.

VIGOR # :: 3056165

Description: CONN HEADER SMD 15POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: BKT-115-05-F-V-S PDF

Country of origin: -

Date code: -

BKT-115-05-F-V-S Specifications

Type	Description
Series:	BKT
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	15
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.065" (1.65mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.267" (6.78mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	End Shrouds
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.8A per Contact
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 17 - Jul 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.7934~~	~~$4.79~~
55	~~$4.7934~~	~~$263.64~~

Current price of BKT-115-05-F-V-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

77311-824-00LF

CONN HEADER VERT 36000POS 2.54MM

95278-401B18LF

CONN HEADER SMD 18POS 2.54MM

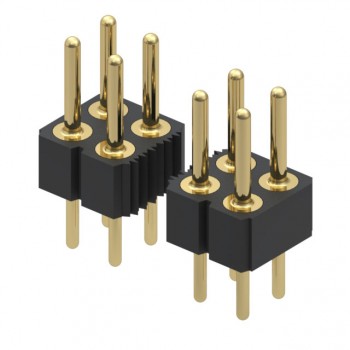

802-10-050-10-001000
