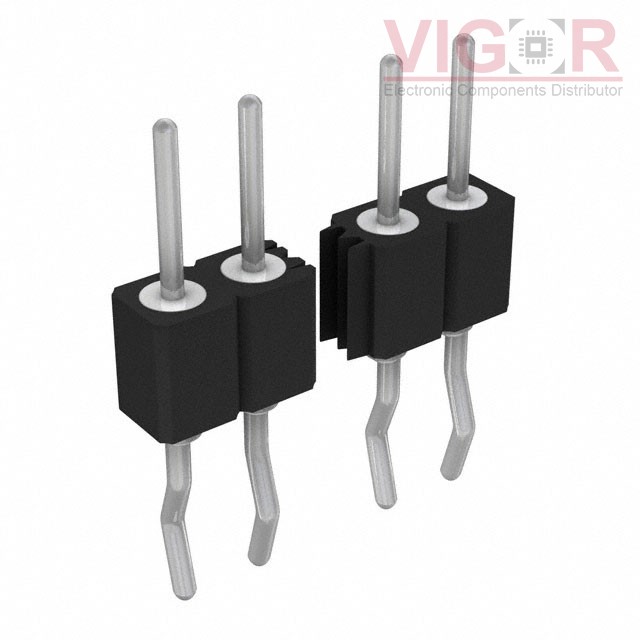

350-80-146-01-666101

Part No :: 350-80-146-01-666101

Manufacturer: Preci-Dip

VIGOR # :: 3056611

Description: CONN HEADER VERT 46POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 350-80-146-01-666101 PDF

Country of origin: -

Date code: -

350-80-146-01-666101 Specifications

Type	Description
Series:	350
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	46
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.141" (3.60mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.390" (9.90mm)
Insulation Height:	0.116" (2.95mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	150VDC
