HIF3B-40PA-2.54DS(71)

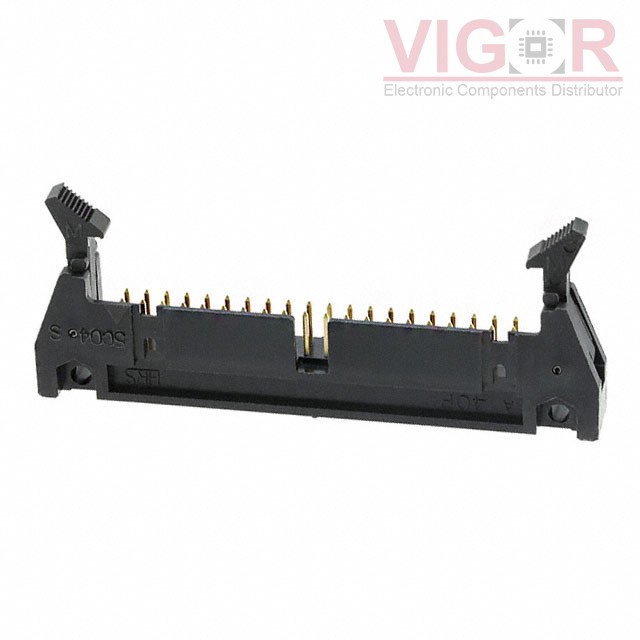

Product image
Product thumb
Part No :

HIF3B-40PA-2.54DS(71)

Manufacturer
Hirose
VIGOR # :

3060306

Description
CONN HEADER R/A 40POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
HIF3B-40PA-2.54DS(71) PDF
Country of origin
-
Date code
-
ads
HIF3B-40PA-2.54DS(71) Specifications
Type Description
Series:HIF3B
Package:Tray
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.303" (7.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:200V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
May 26 - May 30 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.0500 $8.05
10 $7.7000 $77.00
100 $6.4750 $647.50

Current price of HIF3B-40PA-2.54DS(71) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
MMT-109-01-S-SH-P

MMT-109-01-S-SH-P

CONN HEADER SMD R/A 9POS 2MM

TSM-116-01-F-SV

TSM-116-01-F-SV

CONN HEADER SMD 16POS 2.54MM

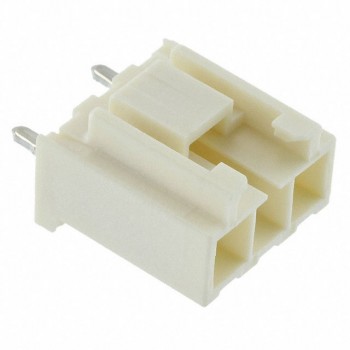

6-176976-1
