M50-3651742R

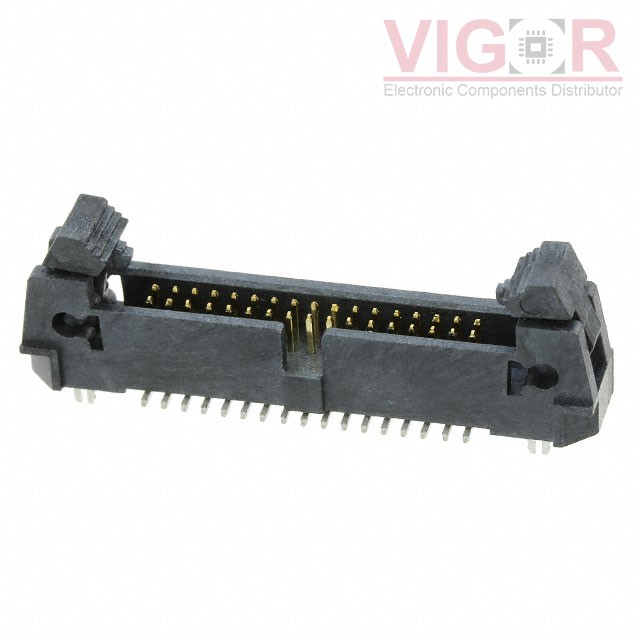

Image is for reference,
please contact us to get the real picture

Part No :: M50-3651742R

Manufacturer: Harwin

Description: CONN HEADER SMD 34POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M50-3651742R PDF

Availability: 1654 pieces

Unit Price: ~~$3.91000~~

Current price of M50-3651742R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M50-3651742R Specifications

Type	Description
Series:	Archer M50
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	34
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.325" (8.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Board Lock, Keying Slot, Pick and Place
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1.75A per Contact
Voltage Rating:	-
