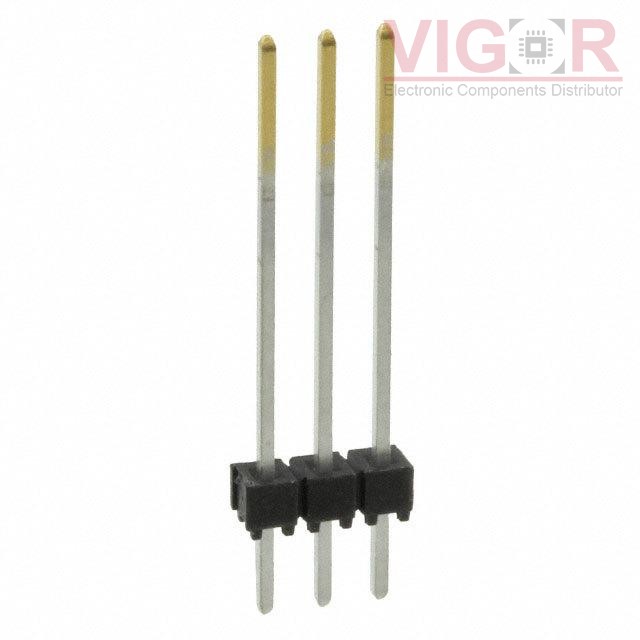

MTSW-103-12-S-S-770

Image is for reference,
please contact us to get the real picture

Part No :: MTSW-103-12-S-S-770

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 3POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MTSW-103-12-S-S-770 PDF

Availability: 336 pieces

Unit Price: ~~$0.78000~~

Current price of MTSW-103-12-S-S-770 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MTSW-103-12-S-S-770 Specifications

Type	Description
Series:	Flex Stack, MTSW
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.770" (19.56mm)
Contact Length - Post:	0.160" (4.06mm)
Overall Contact Length:	1.030" (26.16mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
