09350023003

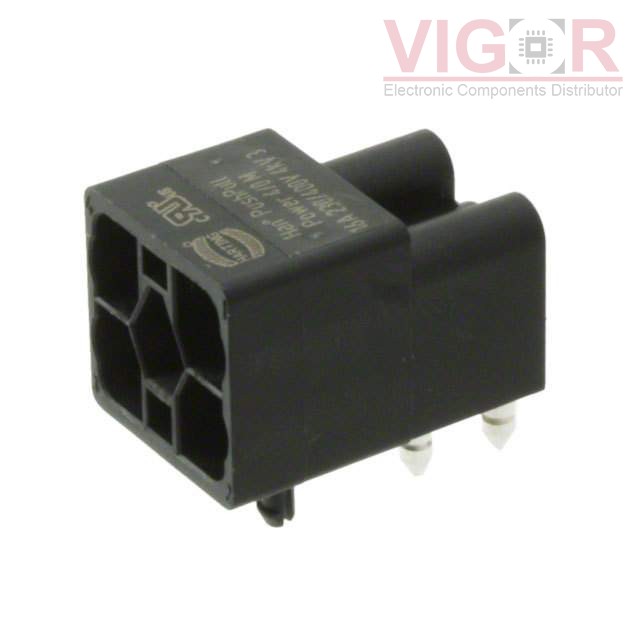

Product image
Product thumb
Part No :

09350023003

Manufacturer
HARTING
VIGOR # :

3072402

Description
CONN HEADER R/A 5POS
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
09350023003 PDF
Country of origin
-
Date code
-
ads
09350023003 Specifications
Type Description
Series:Han® PushPull
Package:Bulk
Part Status:Active
Connector Type:Insert
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:5
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.583" (14.80mm)
Contact Shape:Circular
Contact Finish - Mating:-
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:-
Insulation Material:Thermoplastic
Features:Board Lock
Operating Temperature:-40°C ~ 70°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):16A
Voltage Rating:690V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 10
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $15.33 $15.33
10 $13.94 $139.40
25 $13.59 $339.79
50 $12.55 $627.31
100 $11.85 $1 184.92
250 $10.80 $2 700.94
500 $10.11 $5 053.35
1000 $9.27 $9 270.29

Current price of 09350023003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DF1BZ-8P-2.5DSA

DF1BZ-8P-2.5DSA

CONN HEADER VERT 8POS 2.5MM

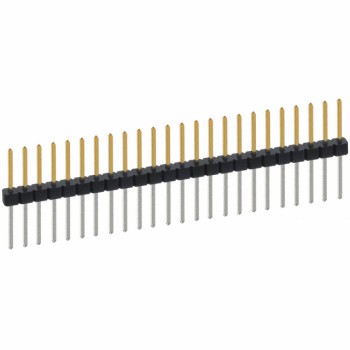

PBC24SFBN
