3-794630-2

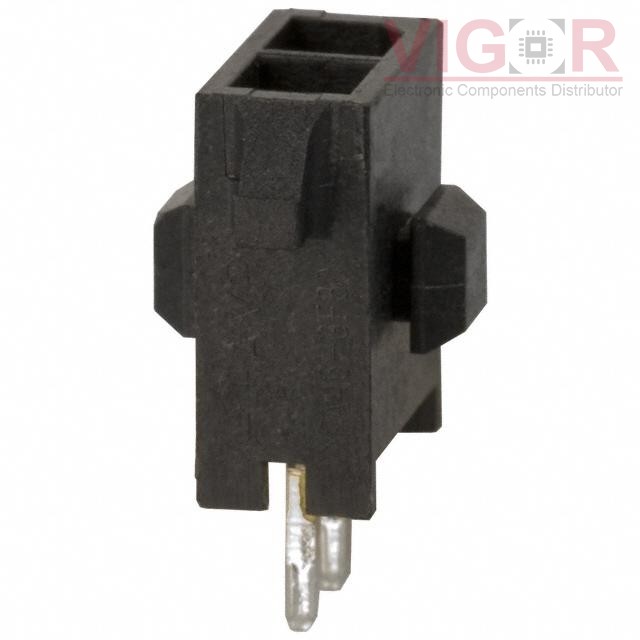

Product image
Product thumb
Part No :

3-794630-2

Manufacturer
VIGOR # :

3074177

Description
CONN HEADER VERT 2POS
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
3-794630-2 PDF
Country of origin
Confirming
Date code
TBC
ads
3-794630-2 Specifications
Type Description
Series:Micro MATE-N-LOK
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:2
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:-
Insulation Height:0.364" (9.25mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 8105
Shipped from
HK warehouse
Expected Shipping Date
Nov 14 - Nov 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.9500 $0.95
10 $0.8431 $8.43
408 $0.6741 $275.05
816 $0.5975 $487.58
1224 $0.5516 $675.12
5304 $0.4903 $2 600.45
10200 $0.4688 $4 782.07

Current price of 3-794630-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
