B22B-XADSS-N (LF)(SN)

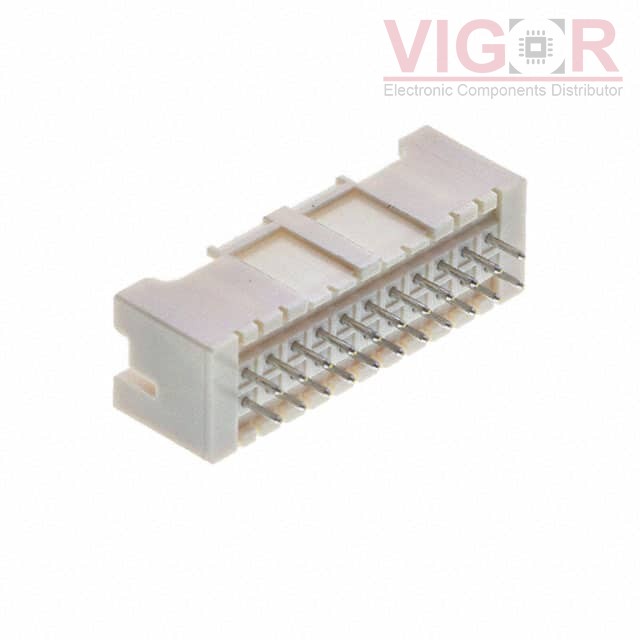

Image is for reference,
please contact us to get the real picture

Part No :: B22B-XADSS-N (LF)(SN)

Manufacturer: JST

Description: CONN HEADER VERT 22POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: B22B-XADSS-N (LF)(SN) PDF

Availability: 805 pieces

Unit Price: ~~$0.93000~~

Current price of B22B-XADSS-N (LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B22B-XADSS-N (LF)(SN) Specifications

Type	Description
Series:	XAD
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	22
Number of Rows:	2
Row Spacing - Mating:	0.098" (2.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.398" (10.11mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA66), Nylon 6/6, Glass Filled
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	3A
Voltage Rating:	250V
