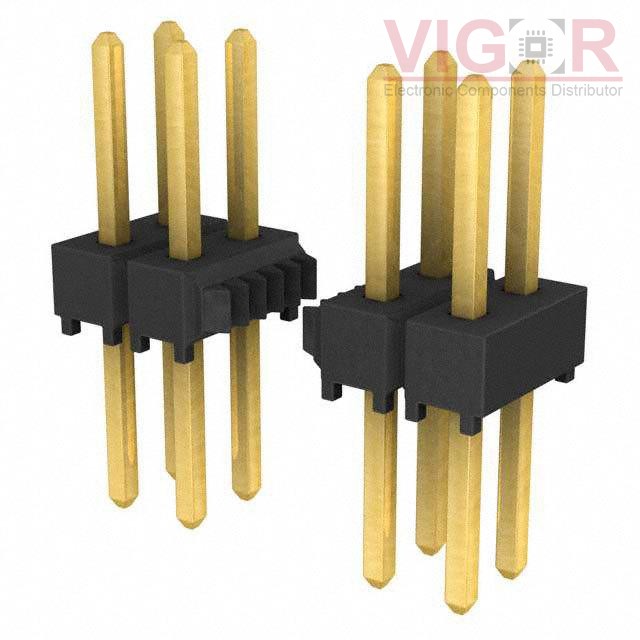

TSW-138-08-G-D

TSW-138-08-G-D

Image is for reference,
please contact us to get the real picture

Part No :

TSW-138-08-G-D

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 76POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
DataSheet
TSW-138-08-G-D PDF
Availability
0 pieces
Unit Price
$6.96000

Current price of TSW-138-08-G-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSW-138-08-G-D Specifications
Type Description
Series:TSW
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:76
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.200" (5.08mm)
Overall Contact Length:0.530" (13.46mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
