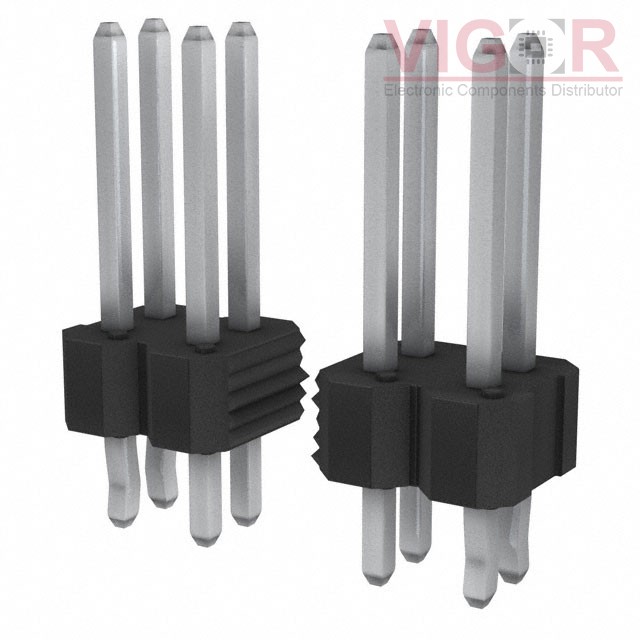

| Type | Description |
|---|---|
| Series: | BERGSTIK® |
| Package: | Bag |
| Part Status: | Active |
| Connector Type: | Header, Breakaway |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 10 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.318" (8.08mm) |
| Contact Length - Post: | 0.117" (2.97mm) |
| Overall Contact Length: | 0.535" (13.59mm) |
| Insulation Height: | 0.100" (2.54mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 78.7µin (2.00µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Thermoplastic |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 1000 |
Current price of 77313-446R10LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 4POS 3.96MM
CONN HEADER VERT 30POS 2.54MM

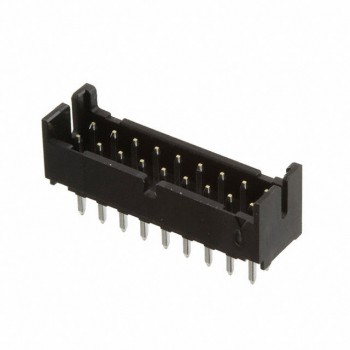

CONN HEADER VERT 18POS 2MM
