M22-2041005

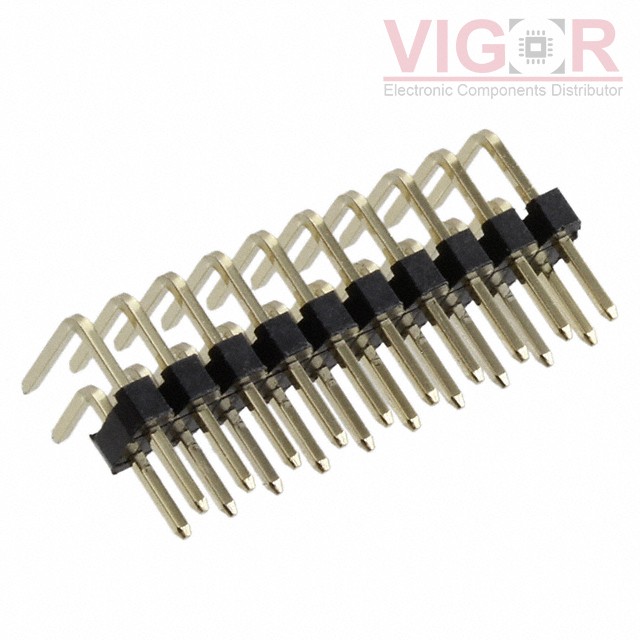

Product image
Product thumb
Part No :

M22-2041005

Manufacturer
Harwin
VIGOR # :

3081309

Description
CONN HEADER R/A 20POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
M22-2041005 PDF
Country of origin
-
Date code
-
ads
M22-2041005 Specifications
Type Description
Series:M22
Package:Bulk
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.138" (3.50mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.157" (4.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 817
Shipped from
HK warehouse
Expected Shipping Date
Jan 16 - Jan 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.31 $1.31
10 $1.15 $11.47
100 $0.99 $99.01
500 $0.81 $405.04
1000 $0.72 $720.08
5000 $0.63 $3 150.35
10000 $0.60 $5 985.60

Current price of M22-2041005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

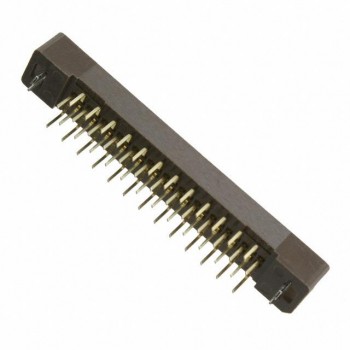

P50LE-050P1-R1-DA

P50LE-050P1-R1-DA

CONN HEADER VERT 50POS 1.27MM

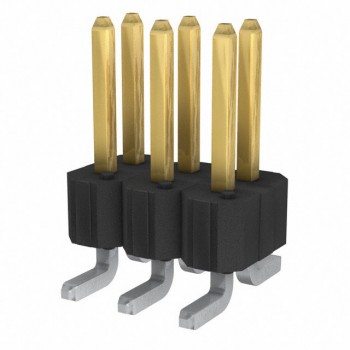

54202-S0803ALF

54202-S0803ALF

CONN HEADER SMD 6POS 2.54MM

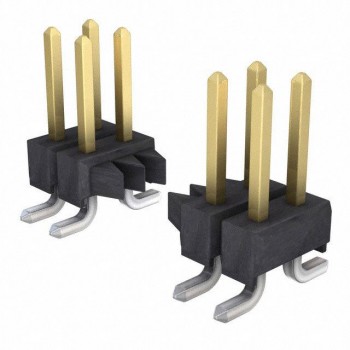

M20-8750742
