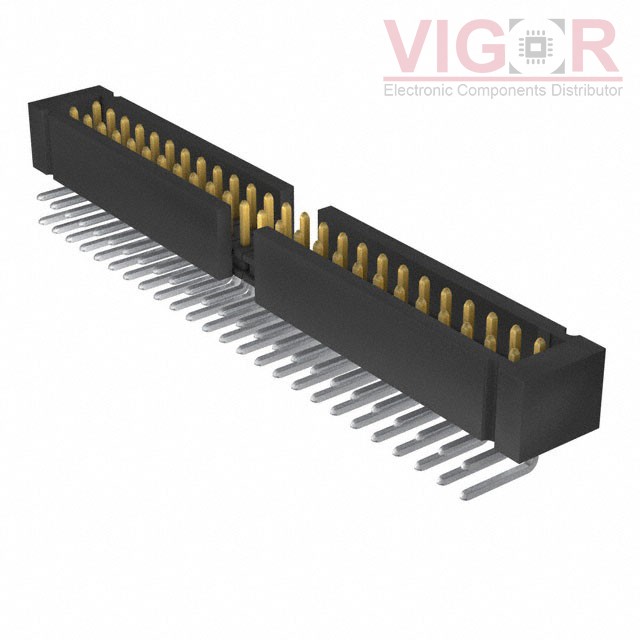

TMMH-125-01-F-D-RA-ES

Image is for reference,
please contact us to get the real picture

Part No :: TMMH-125-01-F-D-RA-ES

Manufacturer: Samtec, Inc.

Description: CONN HEADER R/A 50POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TMMH-125-01-F-D-RA-ES PDF

Availability: 0 pieces

Unit Price: ~~$7.80500~~

Current price of TMMH-125-01-F-D-RA-ES is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TMMH-125-01-F-D-RA-ES Specifications

Type	Description
Series:	TMMH
Package:	Tube
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.126" (3.20mm)
Contact Length - Post:	0.103" (2.62mm)
Overall Contact Length:	-
Insulation Height:	0.250" (6.35mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	End Shrouds
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
