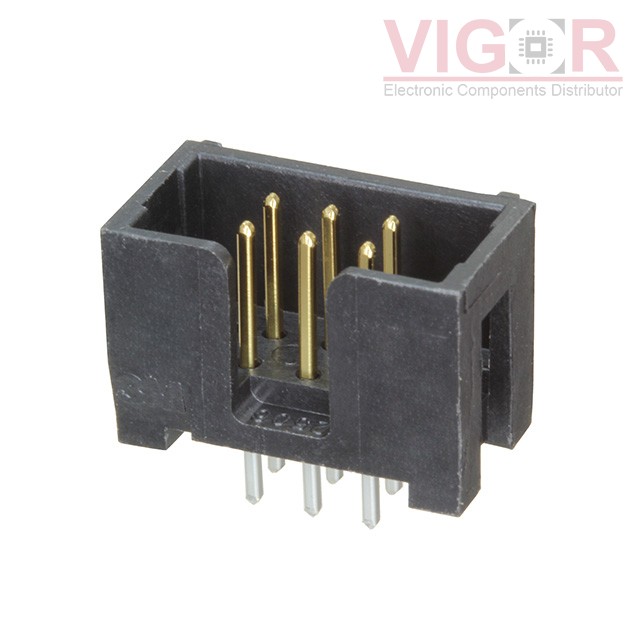

N2506-6002RB

Part No :: N2506-6002RB

Manufacturer: 3M

Description: CONN HEADER VERT 6POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: N2506-6002RB PDF

Availability: 23222 pieces

Unit Price: ~~$1.77000~~

Current price of N2506-6002RB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

N2506-6002RB Specifications

Type	Description
Series:	2500
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.243" (6.17mm)
Contact Length - Post:	0.112" (2.84mm)
Overall Contact Length:	-
Insulation Height:	0.390" (9.91mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:	Keying Slot
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1.75A
Voltage Rating:	-
