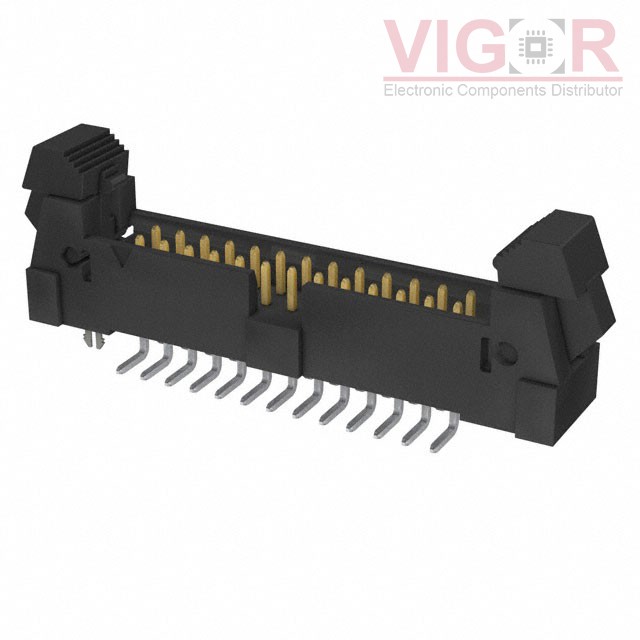

EHT-113-01-S-D-SM-LC

Part No :: EHT-113-01-S-D-SM-LC

Manufacturer: Samtec, Inc.

VIGOR # :: 3092678

Description: CONN HEADER SMD 26POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: EHT-113-01-S-D-SM-LC PDF

Country of origin: -

Date code: -

EHT-113-01-S-D-SM-LC Specifications

Type	Description
Series:	EHT
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.370" (9.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Lock, Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
