77315-118-22LF

77315-118-22LF

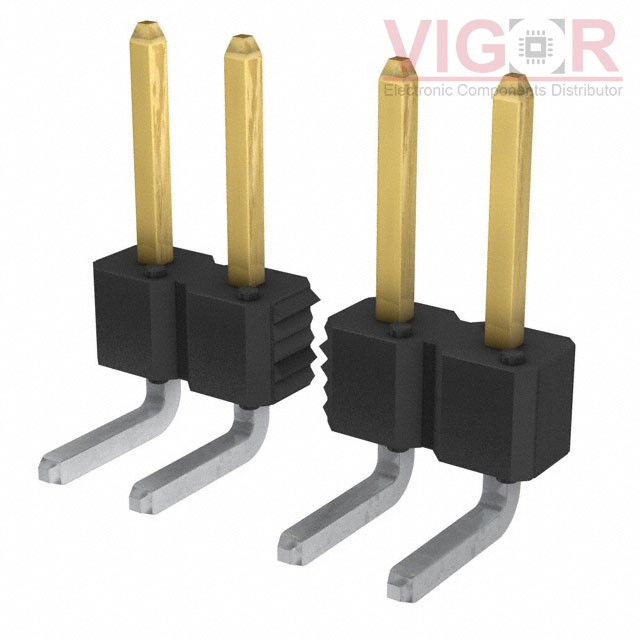

Image is for reference,
please contact us to get the real picture

Part No :

77315-118-22LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER R/A 22POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
DataSheet
77315-118-22LF PDF
Availability
0 pieces
Unit Price
$1.38490

Current price of 77315-118-22LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77315-118-22LF Specifications
Type Description
Series:BERGSTIK®
Package:Bag
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:22
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.094" (2.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold, GXT™
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

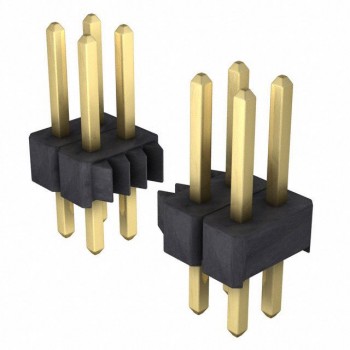

HOT 892-70-052-10-001101

892-70-052-10-001101

CONN HEADER VERT 52POS 2.54MM
HOT TSM-112-02-S-SV-TR

TSM-112-02-S-SV-TR

CONN HEADER SMD 12POS 2.54MM

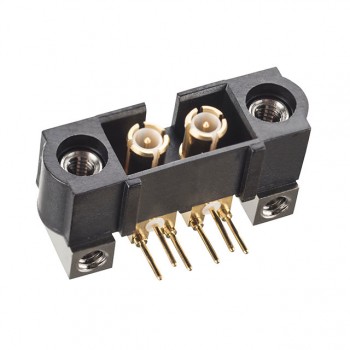

HOT M80-MH313M5-02
